4-Head Automatic Liquid Filling Filling Machine, Adjustable Conveyor Belt Speed Bottle Filling Machine with Belt Conveyor, 0.34-16.91oz Filling Range for White Wine, Beverages

Streamline your liquid filling operations with this high-performance machine. Designed for efficiency and versatility, it offers adjustable nozzles, quantitative filling, and switchable working modes to meet your specific needs. The automatic running mode can fully save you time and energy.♒ Features: Error adjustment, speed adjustment, unit adjustment, other settingsSpeed ​​adjustment, press 0-9 to enter a value, the input value range: 1-100.Conveyor belt speed 10-100 adjustable.Language selection: You can choose "Chinese CHN" and "English ENG"♒ Specification:Material: PVC, Stainless Steel, Aluminum, SiliconeVoltage: AC 110V/220VPower: 150WWorking Environment Temperature: 0-50℃/32-122℉Storage temperature: -10~60℃/14~140℉Filling Range: 10-500mlWater Pump Type: Diaphragm PumpWater Pump Flow: 4* 3.2L/minNumber of Filling Nozzles: 1-4 AdjustableApplicable Bottle Diameter: 20-90mmApplicable Bottle Height: 40-250mmFilling Nozzle Diameter: 8mmFilling Height: 4-25cm AdjustableWater Pipe Inner Diameter: 7mmWater Pipe Outer Diameter: 10mmInlet Water Pipe Length: 2mOutlet Water Pipe Length: 1mReceiving Tray Length: 20cm♒ Filling Machine:Size: 22*18*18cmPackage Size: 35*25*25cmGross Weight: 5kgNet Weight: 4.5kg♒ Conveyor Belt:Size: 100*12*7cmPackage Size: 90*16*16cmGross Weight: 5kgNet Weight: 4.5kg♒ Package Included:1 X Filling Machine Host1 X Conveyor BeltAll Accessories for Assembly♒ Bottle shape: Suitable for cylindrical bottles, please confirm with us for other special-shaped bottles.♒ Choice of closed loop and open loop:1. If the bottle width is greater than 30mm and is not easy to fall, a closed loop can be used.2. If the bottle is

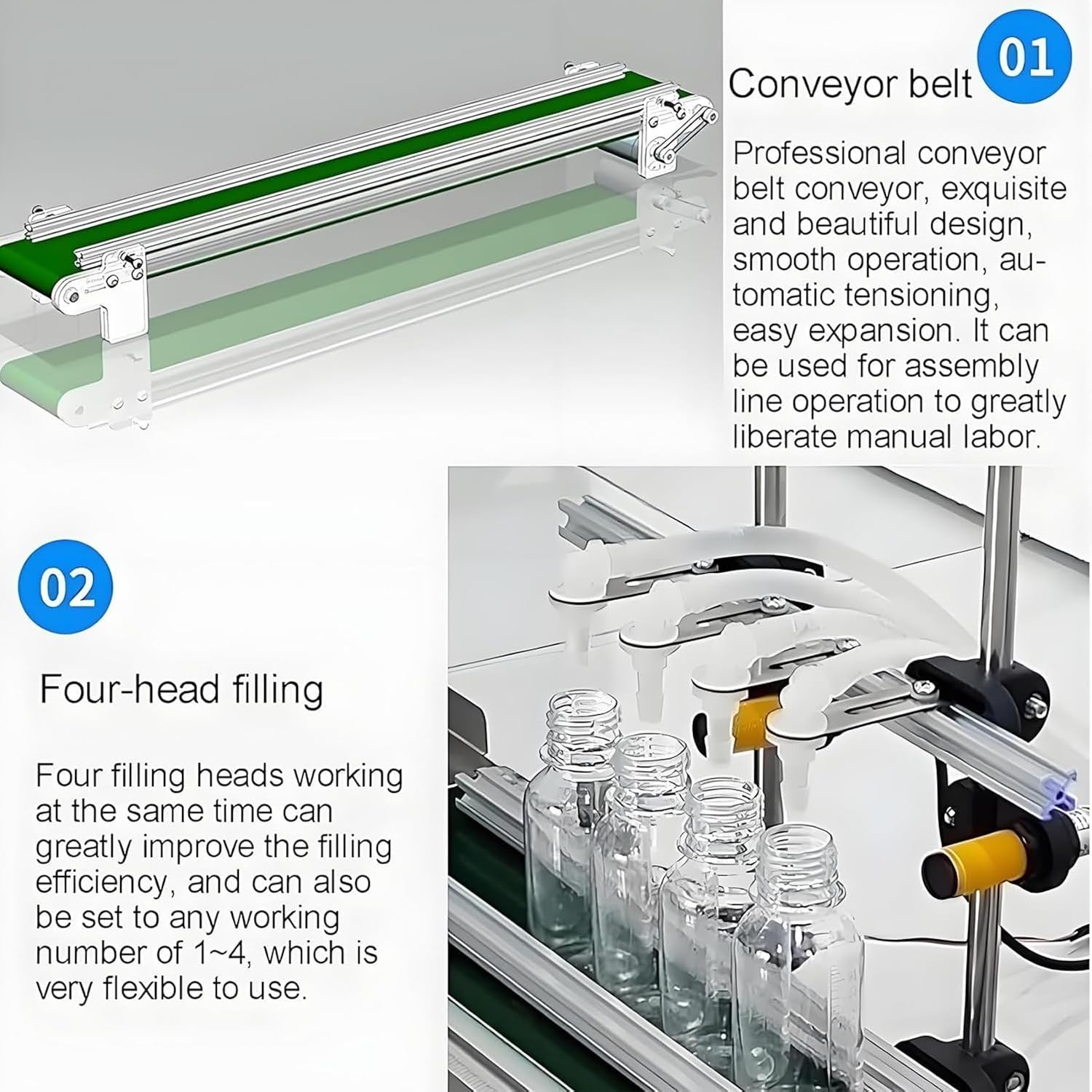

• ♒【Desktop Version Automatic Line】: This compact 4-nozzle automatic line integrates liquid filling machine, belt conveyor, and infrared sensor. It has the automatic sensing, filling, and transportation functions similar with automatic filling lines. You can complete automated production work on any workstation, making it very suitable for small enterprise production!
• ♒【High Efficiency】: Sensors test front and back to ensure that the bottles are in place before filling, which can prevent chaotic filling. Up to 150W power and 4* 3.2L/min water pump flow rate greatly improve the working efficiency. The machine can change between the closed-loop version (You do not need to put the bottle at any interval.) and the open-loop control mode (Putting bottles needs to be close one by one.), which can meet your differnt needs.
• ♒【Precise Filling】: Equipped with clear and simple LED display and buttons, it allows you to adjust the filling liquid volume, belt speed, working mode, and the number of nozzles working (1-4) according to your needs, thus realizing quantitative and precise filling. Meanwhile, it allows you to observe the working status of the filling machine at any time.
• ♒【Thoughtful Design】: The filling tube is made of silicone, which is high-temperature resistant, and flexible. Each filling channel has a mesh strainer to prevent sundries from entering the water pump and pipeline system. The bottle’s diameter should be within 20-90mm, the inner diameter of the opening should be within 10-80mm, and the height of the bottle should be within 40-250mm.
• ♒【Suitable for Thin Fluid】: Desktop 4-head bottle filling line is suitable for handling thin fluid, such as wine, juice, milk, cleaner detergent, etc. NOT for viscous fluid, such as oil, gel, etc. NOT for chemical solution, such as acetone. NOT for fluid with seeds or pulps. The connection between the tubing and the pump is exposed on the liquid filling machine’s cg, so that you can easily install or disassemble the tubing for easy cleaning and maintenance.
